Flexible & Stretchable Microelectrode Arrays (sMEAs)
In Vitro Research
MultiElectrode Arrays are Consumables for MEASSuRE: View Catalog
BMSEED’s flexible and stretchable microelectrode arrays (sMEAs) are designed for in vitro research, enabling real-time recording and stimulation of extracellular electrophysiological activity on a soft, stretchable substrate. Available in different configurations, these sMEAs feature microelectrodes for precise cellular analysis and compatibility with Multi Channel Systems. With high strain and strain rate capacities (up to 50% strain at 80/s), they support applications in neurobiology, mechanotransduction, and more. The arrays allow cells to grow naturally while facilitating a range of experimental setups, from basic research to advanced cellular and tissue studies. Choose from single- to multi-well arrays with or without electrophysiology.
Model: 32sMEA-100-400-4iR-Au-1W
Single-Well: Stretchable with Electrophysiology (Gen 4e)
28 microelectrodes + 4 reference electrodes
recording area: 2.32 mm x 1.72 mm
interelectrode distance (center-to-center): 400 µm within row, 447 µm between rows
recording & stimulation of extracellular electrophysiological activity
soft, flexible, and elastically stretchable substrate for cells to grow on
compatible with the Multi Channel Systems data acquisition system
maximum strain and strain rate: 50% at 80/s
Product Number (PN): 11-52140
Model: 32sMEA-100-960-4iR-Au-1W
Single-Well: Stretchable with Electrophysiology (Gen 4f)
28 microelectrodes + 4 reference electrodes
recording area: 5 mm x 5 mm
interelectrode distance (center-to-center): 960 µm
recording & stimulation of extracellular electrophysiological activity
soft, flexible, and elastically stretchable substrate for cells to grow on
compatible with the Multi Channel Systems data acquisition system
maximum strain and strain rate: 50% at 80/s
Product Number (PN): 11-52150
Model: 60sMEA-100-420-4iR-Au-1W
Single-Well: Stretchable with Electrophysiology (Gen 6b)
56 microelectrodes + 4 reference electrodes
recording area: 2.97 mm x 2.97 mm
interelectrode distance (center-to-center): 420 µm
recording & stimulation of extracellular electrophysiological activity
soft, flexible, and elastically stretchable substrate for cells to grow on
compatible with the Multi Channel Systems data acquisition system
maximum strain and strain rate: 50% at 90/s
Product Number (PN): 11-52220
Model: 34sMEA-200-960-4iR-Au-1W
Single-Well: Stretchable with Electrophysiology (Gen 7a)
30 microelectrodes + 4 reference electrodes
recording area: 9.8 mm x 9.8 mm
interelectrode distance (center-to-center): 960 µm outer electrodes, 1140 µm inner electrodes
recording & stimulation of extracellular electrophysiological activity
soft, flexible, and elastically stretchable substrate for cells to grow on
compatible with the Multi Channel Systems data acquisition system
maximum strain and strain rate: 50% at 80/s
Product Number (PN): 11-52160

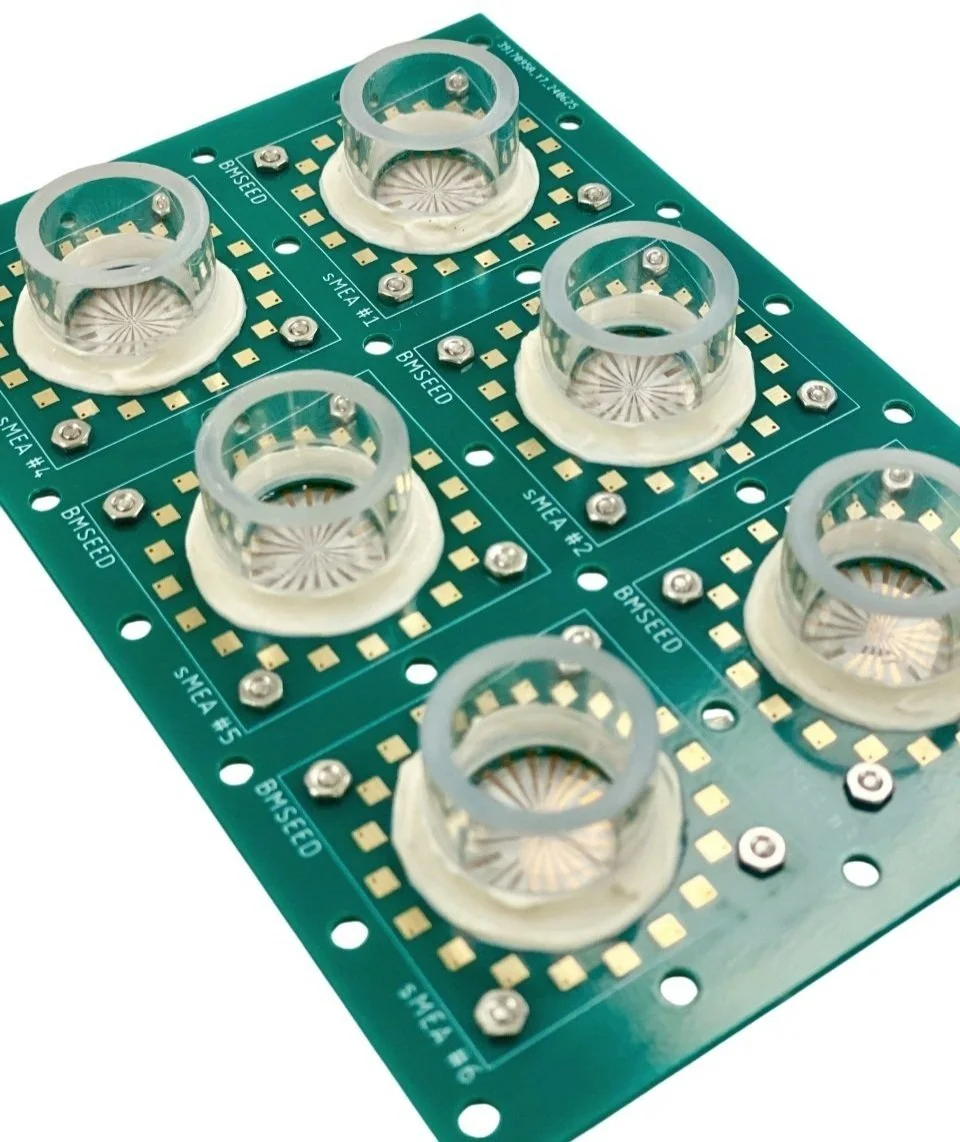

Model: 20sMEA-100-400-2iR-Au-6W
Six-Well: Stretchable with Electrophysiology
18 microelectrodes + 2 reference electrodes (per well)
multi-well configuration
recording & stimulation of extracellular electrophysiological activity
soft, flexible, and elastically stretchable substrate for cells to grow on
maximum strain and strain rate: 50% at 80/s
Part Number (PN): 11-52310
Model: 0sSW-0-0-0iR-1W
Single-Well: Stretchable without Electrophysiology (Stretchwell)
no electrodes
elastically stretchable (silicone substrate)
soft substrate for cells to grow on
maximum strain and strain rate: 50% at 80/s
Product Number (PN): 11-55110
Model: 0sSW-0-0-0iR-6W
Six-Well: Stretchable without Electrophysiology (Stretchwell)
no electrodes
multi-well configuration
elastically stretchable (silicone substrate)
soft substrate for cells to grow on
maximum strain and strain rate: 50% at 80/s
Part Number (PN): 11-55120
SELECTION GUIDE FOR CONSUMABLE
Identify whether to use stretchable microelectrode arrays, stretchwells, or glass MEAs.
